ATHLETIC FLOORING
SPORTS – HARDWOOD – GYM
MAPLE HARDWOOD FLOORING

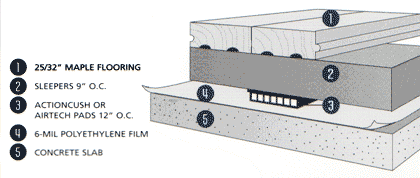

Allied Products offer the most popular maple floor systems used in the industry for basketball, aerobics and multipurpose use. These floor systems are the most widely used because they are designed to maximize performance, stability, longevity and safety with cost effectiveness. The solid T&G maple flooring strips are available in both 25/32” or 33/32” thickness and several widths over a number of different underlayment systems.
Tru-Maple Cush™
Applications: Racquetball and Squash Court Floors
|
Architectural Specifications – CSI Format   pdf file
This resilient floating floor system combines the Airtech™ natural rubber pads, (or PVC pads), attached to the Tru-Maple Cush™ sleepers with the strength of solid T&G maple flooring strips to create a high profile cushioned system. This floor system floats on the slab to create excellent shock absorption along with great airflow. The Tru-Maple Cush™ is an excellent choice for racquetball and squash courts.
Tru-Maple Sports
Applications: Basketball, Aerobics & Multipurpose Use
|
Architectural Specifications – CSI Format pdf file
This system consists of two layers of 15/32” thick CDX plywood with 3/4” thick pneumatic rubber pads affixed to the bottom of the first layer of plywood and solid T&G maple flooring strips attached to the top layer of plywood. The floor system is typically finished with two coats of sealer, painted with game lines (when applicable), and finished with two coats of urethane finish. Vented, rubber cove base is then installed to cover the expansion gap around the perimeter of the room.
Tru-Maple Sports captures the essential factors of DIN characteristics known as Din Essence, using commonsensical criteria for shock absorption, ball rebound, deformation and peripheral control. This system is excellent for gymnasiums, aerobics, dance floors and multipurpose floors. The rubber pads are available in two Durometer (hardness) ratings and variable thickness depending on the floor use.

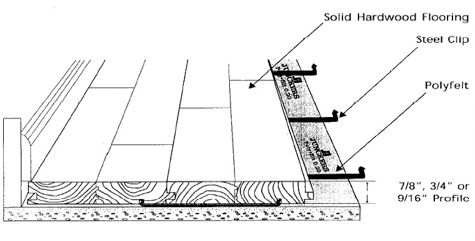

Wood Flex Clip System
Applications: Gym, Court Floors, Basketball - Volleyball |
Download our PDF file for Wood Flex Clip System pdf file
WOOD FLEX CLIP SYSTEM QUICK SPECS
SOLID HARDWOOD FLOORING is pre-finished tongue and groove planking. The wood surface is 7/8” of solid hardwood, allowing it to be sanded and refinished a number of times. Boards are 5” by either 6 or 12 feet in length.
INSTALLATION CLIPS are manufactured of tempered spring steel. While not only holding the boards together, the steel clips also allow the boards to deflect along the tongue and groove joint upon impact and subsequently snap back into place, allowing for ideal shock absorption for the athlete.
CUSHIONING SYSTEM is a 3/8” closed-cell polyethylene aerobic foam. This allows the boards to be cushioned as they flex along the tongue and groove joints upon impact. The foam layer allows the shock to be dissipated and taken away from the participant’s body.
Read more on this product >> |
